500L  Ice water tank

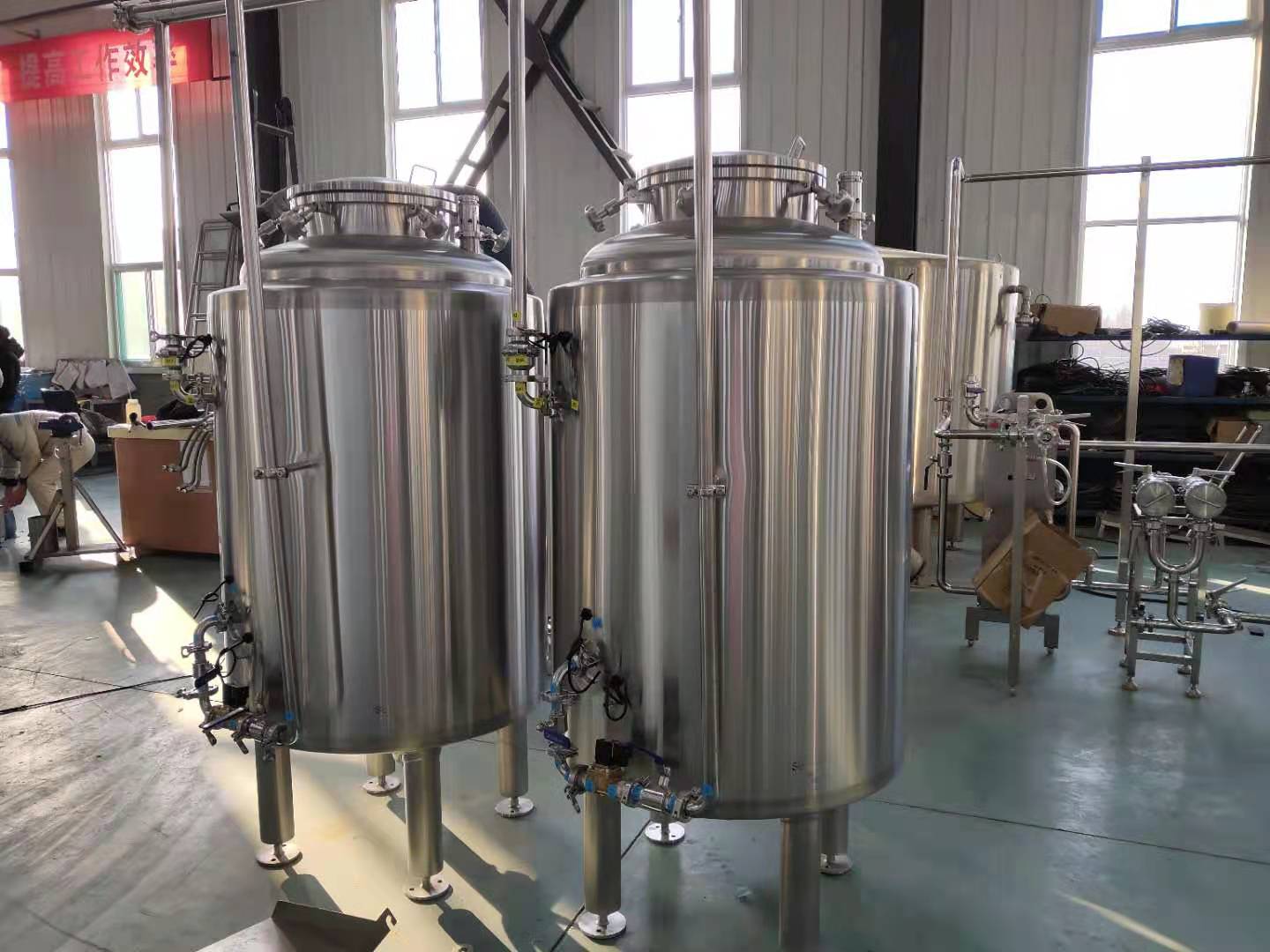

500L Ice water tank




General description:

            • Design pressure: Atmospheric

• Material: AISI 304 S/S

• Effective volume:5HL

• Inner tank thickness: 3mm, outer thickness: 2.0mm

• Polyurethane insulation on side, bottom and top

• Cone head, Cone bottom

• PT100 temp sensor

• Interior weld finish, welding joint acid washed, strain removed and brightened

• Exterior welding finish: polished and brightened, acid washed , Welding joint polished

• Top fittings: normal pressure manway, water inlet, Lifting ear, venting pipe

• Side fittings: Temp sensor PT100, liquid level, overflow pipe

• Bottom fittings: glycol outlet, draining outlet

• Possible over flow pipe can be configured

• With cooling jacket on cylinder.

• Glycol flow inside cooling jacket, connected with fermentation loop
