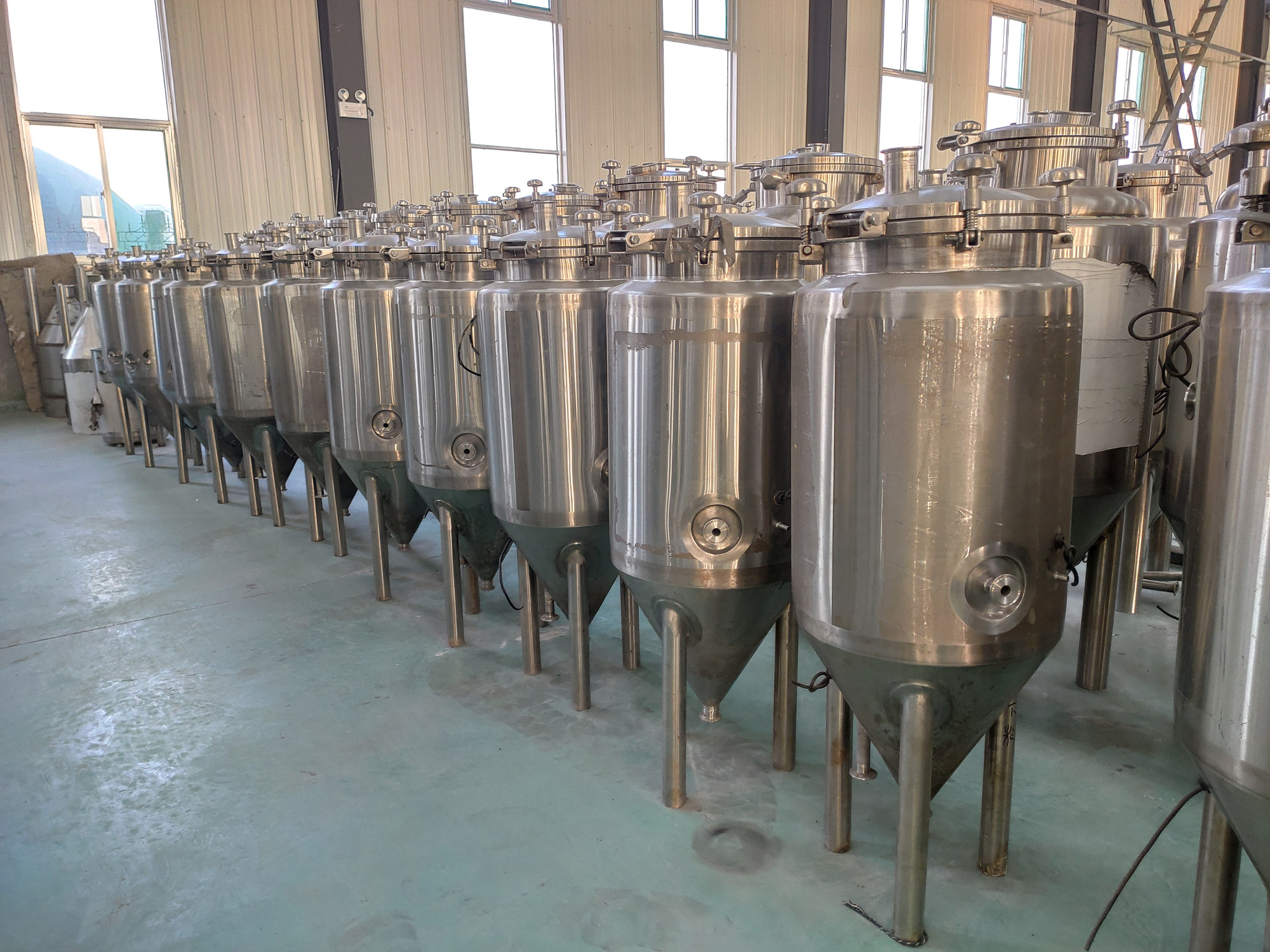

50L Fermenter

Quantity:30

General description:

• Material: AISI 304

• Effective volume:50L

• Tank working pressure : 2bar

• Inner tank thickness: 3mm, outer cladding: 2mm

• Polyurethane insulation, thickness: 80mm, side and bottom insulated

• Dimple plate cooling jacket

• Cooling stage: cylinder and cone, both jackets connected

• One temp control stage, PT100 Temp sensor

• Exterior: stain removed, and brightened on regular margin

• Interior surface: Polished, and welding joint acid cleaned

• Roughness: 0.4um

• Domed top, 60 degree cone angle

• 4 pcs stainless steel leg, with adjustable leg bolt

• Top fittings: CIP arm, spray ball, PVRV, dry hopping port

• Side fittings: Glycol inlet/outlet, thermo well, sample port

• Bottom fittings: Drain outlet, beer outlet
