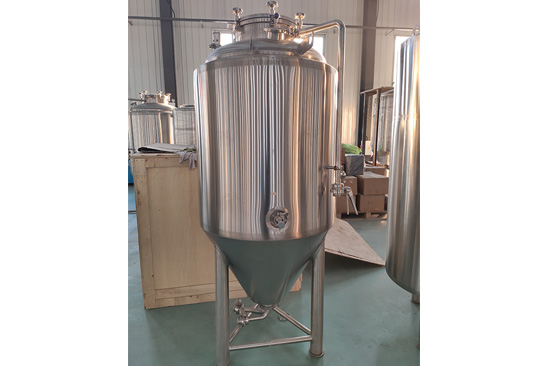

 500L Fermenter

500L Fermenter

Online

Quantity:1pc

Specification

General description:



  • Material: AISI 304

  • Tank working pressure : 3bar

  • Inner tank thickness: 3mm, outer cladding: 2mm

  • Polyurethane insulation, thickness: 80mm,

  • Dimple plate cooling jacket

  • Cooling stage: cylinder and cone, both jackets connected

  • One temp control stage, PT100 Temp sensor

  • Exterior: stain removed, and brightened on regular margin

  • Interior surface: Polished, and welding joint acid cleaned

  • Roughness: 0.4um

  • Domed top, 60 degree cone angle

  • Top fittings: CIP arm, spray ball, PVRV, dry hopping port, top manhole

  • Side fittings: Glycol inlet/outlet, thermo well, sample port

  • Bottom fittings: Drain outlet, beer outlet

  • CIP arm

    Dry hopping port on top
