450L Horizontal   BBT

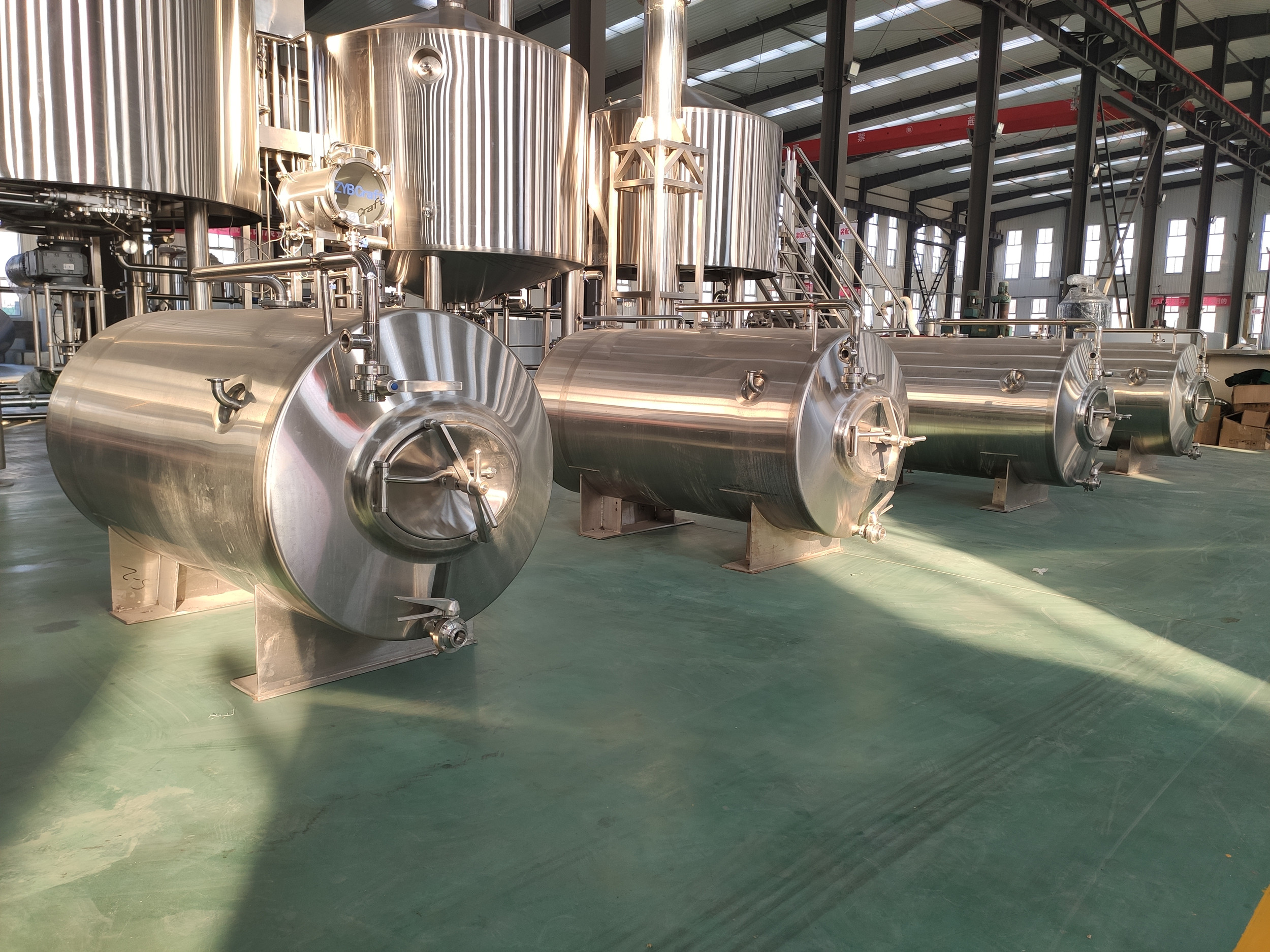

450L Horizontal BBT

Online

Quantity:6 pcs

Specification

General description:

• Material: SUS 304 S/S

• Volume: 450L

• Tank working pressure: 2bar

• Jacket working pressure: 1bar

• Inner tank thickness: 3.0mm, outer cladding: 2.0mm

• Polyurethane insulation, thickness: 80mm,

• Side and Bottom insulated

• Dimple plate cooling jacket for glycol liquid

• Jacket cooking area: 2.6m2

• One  temp control stage

• Interior surface: Polished, and welding joint acid cleaned

• Roughness: 0.4um

• Domed top with lift ear

Top fittings: CIP arm, spray ball, PVRV, lift ear, ladder holder

• Side fittings: Glycol inlet/outlet, thermowell, side manway,  sample port

• Bottom: Material outlet , carbonation unit

• CIP arm, with diaphragm pressure gauge

• Stainless steel leg, diameter: 159mm, with adjustable leg plate

 Fittings quantity:

 3* butterfly valves (beer outlet, 2 for CIP arm, )

 1* breathe valve on tank top

 1*bunging device installed with CIP arm

 1*CIP arm

 1* pressure indicator

 1* temp sensor
