Horizontal Storage Tank
  • Horizontal Storage Tank
  • Horizontal Storage Tank
  • Horizontal Storage Tank
  • Horizontal Storage Tank
Horizontal Storage TankHorizontal Storage TankHorizontal Storage TankHorizontal Storage Tank

Horizontal Storage Tank

Specification

Feature Description:

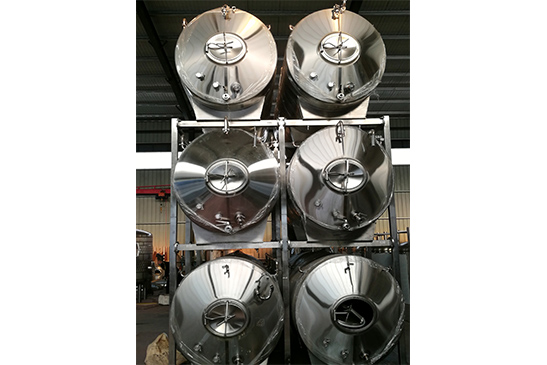

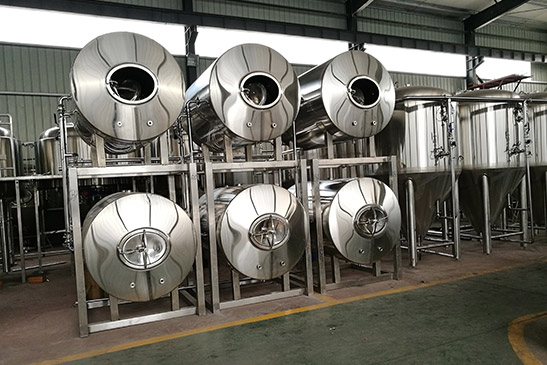

The horizontal tanks mainly for beer storage, which can be stacked with 2-3 tanks, to make full use of the height. Fermentation finished in short time, then we use horizontal tank for storage for longer time.

2-3 tanks stacked with frame. With right beer outlet, carbonation unit etc. All glycol cooling line preassembled. Inside surface to be passivated. All fittings installed with tanks using top brand in China or famous brand from other countries. The tank working pressure up to 3bar to fit the requirement of carbonation when necessary.

Capacity range: 5HL-50HL or 5BBL-50BBL, or customized


Details:

● Horizontal type

● With frame for supporting tanks

● Double heads with domed seal

● Pressure: 2-3 bar / 15-30PSI

● Dimple plate cooling jacket, cylinder, Polyurethane insulation, Thickness: 80-100mm

● All glycol line pre assembled

● CIP arm with pressure gauge, rotating spray ball

● Side manway, sample valve


Optional:

● Can be used as inliner tank, with one way plastic bag inside.
